The new generation

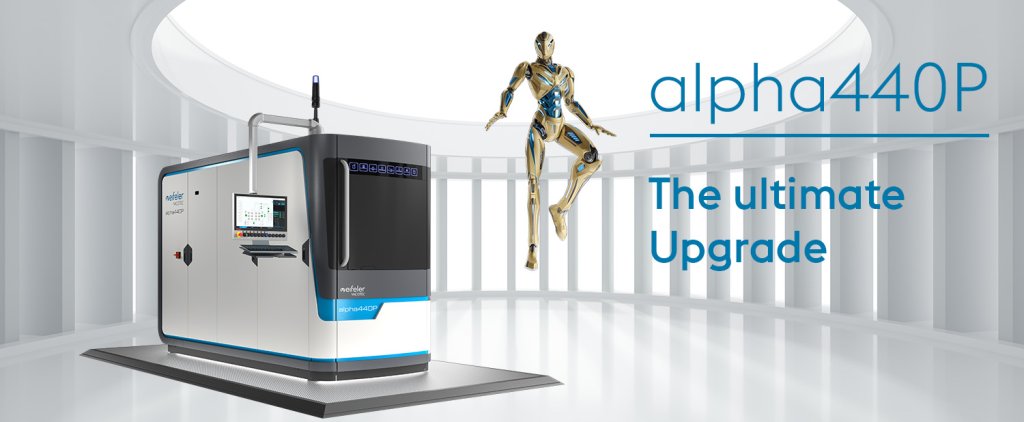

alpha440P
MORE OVERVIEW. MORE COMFORT. MORE PRODUCTIVITY.
The alpha440P PVD coating system is the new generation of the alpha400P. It brings the advantages of its predecessor to your modern production environment. Our new system software and smart sensors enable precise process control and provide detailed information about the system status. Its compact design and high flexibility make it the ideal system to start with or to complement existing systems. With the coatings available for the alpha440P, it can significantly increase the performance of cutting and forming tools, as well as dental and medical technology products.
- Advanced sensor/actuator hardware as the basis for predictive maintenance functions
- High plasma density
- Intuitive touch control user interface
- Easy to maintain
- Quick-change system for all pumps
- Low operation costs
- Optional Fast Cooling System to reduce cooling times by at least 25 %
- Optional: Duplex-PVD with additional plasma sources for in-situ plasma nitriding
- Optional: SPCS equipment for access to eifeler’s extra smooth and dense ultrafine coatings
- Usable volume: Ø 450 mm × 525 mm
- Load: max. 300 kg
- Coating chamber (L×W×H): 775 × 700 × 750 mm
- Dead weight: 3,500 kg
- Distributed load: 1,060 kg/m2
- Bias: 30 kW/max. 1,000 V DC/pulsed DC
- Evaporator sources: 12 pcs. with each max. 125 A
- Batches per day: up to 5 batches
- Exemplary batch endmill (Ø 10 × 70 mm): 432 pcs. per batch
- Exemplary batch hobs (Ø 100 × 150 mm): 24 pcs. per batch
- TiN
- CrCN
- EXXTRAL®-plus
- SISTRAL®
- VARIANTIC®
- Duplex coatings
- TiN-ultrafine
- TiCN-ultrafine
- SUBLIME®
- EXXTRAL®-ultrafine
- SISTRAL®-ultrafine
- CROSAL®-plus
