The flexible all-rounder

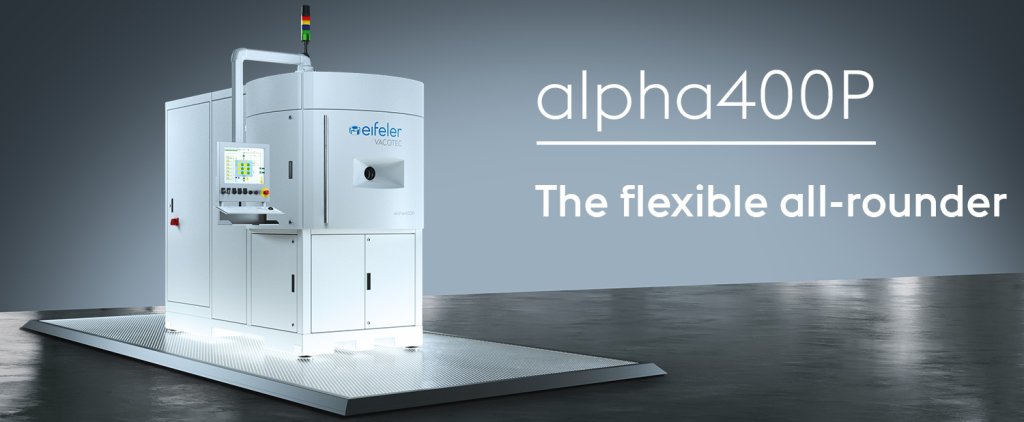

alpha400P
The alpha400P PVD coating system is small and highly flexible. This makes it the ideal equipment for coating centres as a supplement to large-volume coating systems, such as the alpha900P. In a resharpening or tool manufacturing plant, it efficiently coats hobs, shaper cutters and shank tools – as well as stamping and forming tools. If you are an original part manufacturer (OEM) with a high throughput of similar-type parts, the alpha400P will work as an integral part of your production line.
- High plasma density
- High flexibility and productivity
- Dual evaporators for high production stability and access to mixed-material coatings
- Simple loading and intuitive operation
- Easy to maintain
- Low operation costs
- Optional: SPCS equipment for access to eifeler’s ultrafine coatings with extra smooth and dense surfaces
- Optional: Duplex-PVD with additional plasma sources for in-situ plasma nitriding
- Usable volume: Ø 450 mm × 525 mm
- Load: max. 300 kg
- Coating chamber (L×W×H): 775 × 700 × 750 mm
- Dead weight: 3,000 kg
- Distributed load: 980 kg/m2
- Bias: 30 kW/max. 1,000 V DC/pulsed DC
- Evaporator sources: 12 pcs. with each max. 125 A
- Batches per day: up to 5 batches
- Exemplary batch Endmills (Ø 10 × 70 mm): 432 pcs. per batch
- Exemplary batch Hobs (Ø 100 × 150 mm): 24 pcs. per batch
- TiN
- CrCN
- EXXTRAL®-plus
- SISTRAL®
- VARIANTIC®
- Duplex coatings
- TiN-ultrafine
- TiCN-ultrafine
- EXXTRAL®-ultrafine
- SISTRAL®-ultrafine
- CROSAL®-plus
