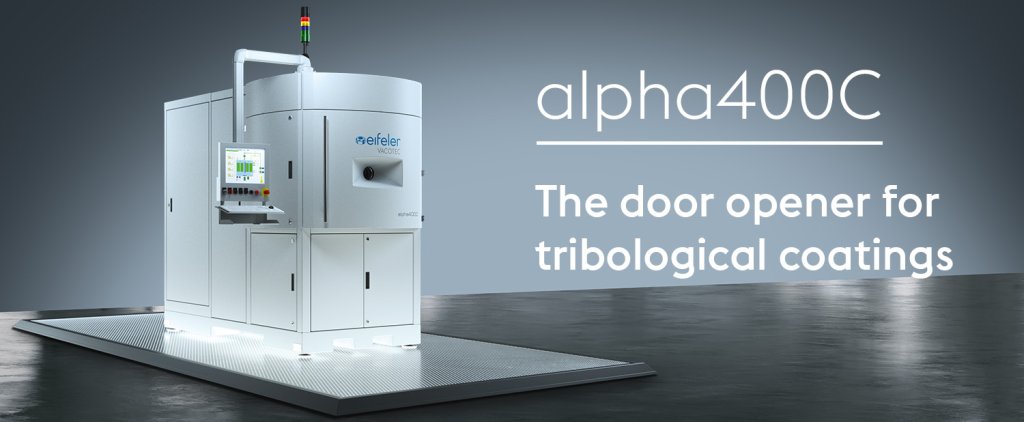

The door opener for tribological coatings
alpha400C
With the alpha400C coating system, you can produce friction-reducing coatings on reasonably sized parts, especially on carbon-base or MoS2-base. The production of nitridic hard coatings with substrate temperatures below 250 °C / 482 °F are accessible with it as well. The smallest magnetron sputter system in our range offers you high flexibility and short production cycles. That makes it a perfect fit for R&D divisions in production and universities. It works great as well in production lines of original part manufacturers (OEM) – with a high throughput of similartype parts – becoming an integral component of their production system.
- High flexibility, high productivity
- Cryopump for faster pumping
- Target shutter system for high reliability
- Access to eifeler’s tribological coatings (MoX2®, DLC)
- Simple loading and intuitive operation
- Easy to maintain
- Low operating costs
- High plasma density
- Usable volume: Ø 450 mm × 525 mm
- Load: max. 300 kg
- Coating chamber (L×W×H): 775 × 630 × 750 mm
- Dead weight: 3,000 kg, incl. separate Polycold
- Distributed load: 850 kg/m2
- Bias: 10 kW/max. 1,000 V DC/pulsed DC
- Sputter sources: 4 pcs. 643 × 145 mm, 6 kW each
- Batches per day: typically 3 – 4 batches
- Exemplary batch Endmills (Ø 10 × 70 mm): 432 pcs. per batch
- Exemplary batch Hobs (Ø 100 × 150 mm): 24 pcs. per batch
- Turntables: different numbers of satellites available
- SUCASLIDE®
- CARBON-X®
- CHROME-X®
- MoX2®
- Nitridic hard coatings
