The versatile coater

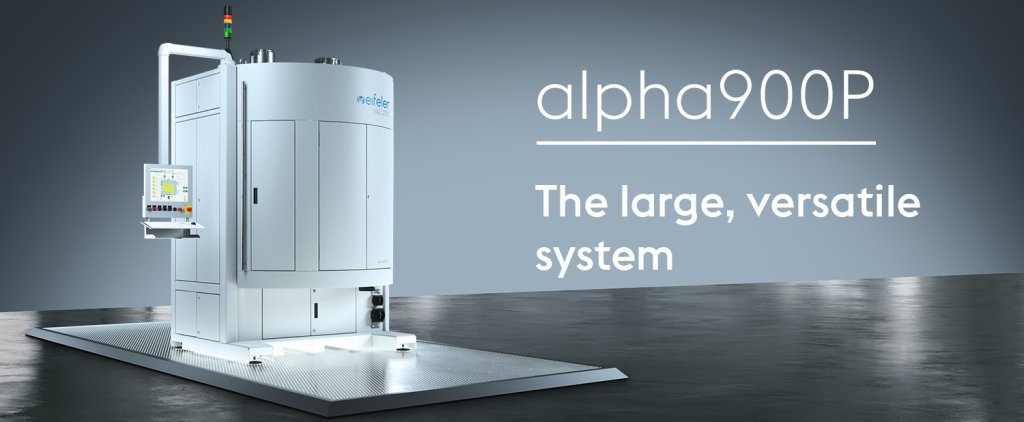

alpha900P
The alpha900P is the efficient coating system with high throughput. You can use it to extend a demanding coating centre or to integrate it in the production of cutting tools (hobs, shaper cutters, shank tools) at an original part manufacturer (OEM). Due to its large chamber, you can even use it as a coating system for large and heavy stamping, forming or die casting tools in corresponding operations.
- High plasma density
- High flexibility, high productivity
- Dual evaporators for high production stability
- Access to mixed-material coatings
- Simple loading and intuitive operation
- Easy to maintain
- Low operation costs
- Optional: SPCS equipment for access to eifeler’s ultrafine coatings with extra smooth and dense surfaces
- Optional: Duplex-PVD with additional plasma sources for in-situ plasma nitriding
- Usable volume: Ø 800 mm × 880 mm
- Load: max. 850 kg
- Coating chamber (L×W×H): 1,100 × 1,100 × 1,355 mm
- Dead weight: 3,800 kg
- Pumping station weight: 250 kg
- Cabinets weight: 1,710 kg incl. Duplex-PVD
- Distributed load: 2,710 kg/m2
- Bias: 30 kW/max. 1,000 V DC/pulsed DC
- Evaporator source: 24 pcs. with each max. 125 A
- Batches per day: typically 3 – 4 batches
- Exemplary batch Endmills (Ø 10 × 70 mm): 1,764 pcs. per batch
- Exemplary batch Hobs (Ø 100 × 150 mm): 42 pcs. per batch
- Turntables: different numbers of satellites available
- TiN
- CrCN
- EXXTRAL®-plus
- SISTRAL®
- VARIANTIC®
- Duplex coatings
- TiN-ultrafine
- TiCN-ultrafine
- EXXTRAL®-ultrafine
- SISTRAL®-ultrafine
- CROSAL®-plus
